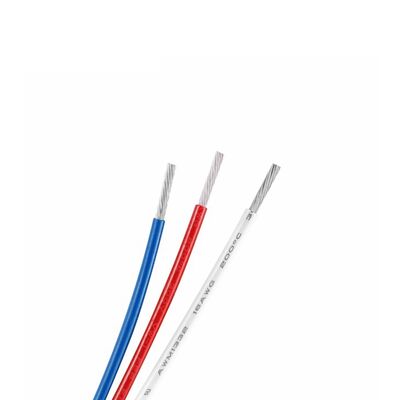

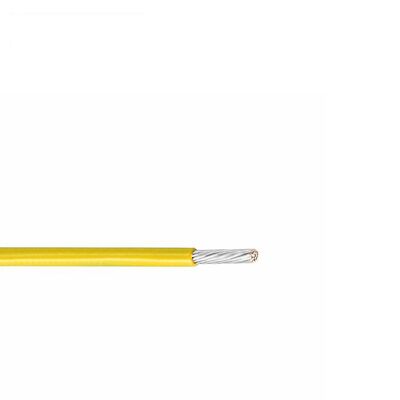

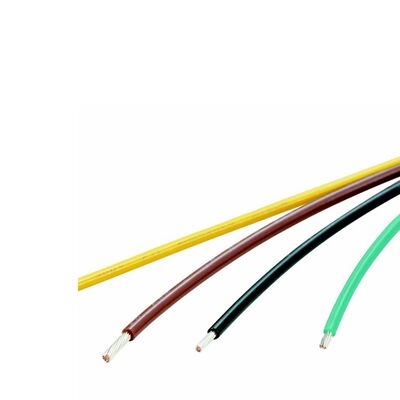

Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications

Tempat asal	Guangdong, Tiongkok
Nama merek	MYSUN
Nomor model	V048486 CQC20011252316 E(z)-200/TX/FEP
Kuantitas min Order	3050

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

Detail produk

Bahan konduktor	Tembaga kaleng	Diameter	, 3,31mm2, 4,00mm2, 5,26mm2, 6,00mm2, 8,37mm2, 10mm2, 13,30mm2, 16,00mm2
Bahan isolasi	FEP	Nilai Tegangan	300 v
Tipe Konduktor	Padat	Membentuk	Bulat
Kisaran Suhu	150C, 200℃	Jenis	Terisolasi
Panjang satuan	305/1000	Resistensi konduktor maksimal	381 Ω/KM, 239 Ω/KM, 150 Ω/KM, 94,2 Ω/KM, 59,4 Ω/KM, 46,6 Ω/KM, 37,4 Ω/KM, 24,8 Ω/KM, 23,5 Ω/KM, 18,7
Ketebalan nominal	0,230mm, 0,380mm, 0,510mm	Diameter Isolasi	0.80mm, 0.85mm, 0.95mm, 1.10mm, 1.20mm, 1.35mm, 1.50mm, 1.60mm, 1.95mm, 2.15mm, 2.30mm, 2.40mm, 2.70
Diameter konduktor	0.30mm, 0.38mm, 0.48mm, 0.60mm, 0.78mm, 0.85mm, 0.96mm, 1.12mm, 1.17mm, 1.35mm, 1.52mm, 1.60mm, 1.89	Konstruksi	7/0.10, 7/0.127, 7/0.16, 19/0.12, 19/0.15, 19/0.17, 19/0.19, 19/0.225, 19/0.235, 19/0.26, 19/0.30, 1
Menyoroti	Flame Retardant FEP Wire , Nickel Plated Copper FEP Wire , UAV Robot Generator Wire

Tinggalkan pesan

Deskripsi Produk

Flame Retardant FEP Wire 300V 200°C Nickel Plated Copper

Product Specifications

V048486 CQC20011252316 E(z)-200/TX/FEP Wire	UL1330
Conductor	Insulation	Max. Cond Resistance (Ω/KM)	Unit length (M)(Ft)
Size (AWG)	Construction (No.mm)	Diameter (mm)	Nominal thickness (mm)	Diameter (mm)
0.051	7/0.10	0.30	0.230	0.80	381	610/2000
0.08	7/0.127	0.38	0.230	0.85	239	610/2000
0.13	7/0.16	0.48	0.230	0.95	150	305/1000
0.21	19/0.12	0.60	0.230	1.10	94.2	305/1000
0.32	19/0.15	0.78	0.230	1.20	59.4	305/1000
0.40	19/0.17	0.85	0.230	1.35	46.6	305/1000
0.52	19/0.19	0.96	0.230	1.50	37.4	305/1000
0.75	19/0.225	1.12	0.230	1.60	24.8	305/1000
0.82	19/0.235	1.17	0.380	1.95	23.5	305/1000
1.00	19/0.26	1.35	0.380	2.15	18.7	305/1000
1.31	19/0.30	1.52	0.380	2.30	14.7	305/1000
1.50	19/0.32	1.60	0.380	2.40	12.5	305/1000
2.08	19/0.375	1.89	0.380	2.70	9.22	305/1000
2.50	19/0.41	2.08	0.380	2.90	7.47	305/1000
3.31	19/0.475	2.39	0.380	3.20	5.75	100/328
4.00	19/0.52	2.70	0.380	3.50	4.68	100/328
5.26	19/0.60	3.00	0.380	3.80	3.62	100/328
6.00	19/0.64	3.25	0.380	4.00	3.12	100/328
8.37	68/0.40	3.90	0.510	4.95	2.23	100/328
10.00	37/0.59	4.30	0.510	5.35	1.87	100/328
13.30	133/0.36	5.20	0.510	6.25	1.41	100/328
16.00	133/0.393	5.60	0.510	6.65	1.17	100/328

Company Profile

Our Products

Applications

Our Overseas Clients

Exhibitions

Certifications

Frequently Asked Questions

1. Who Are We?

We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.

2. What Can We Provide?

We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.

3. Why Choose Us?

Free sample
Competitive price
High quality standard
Customized service

4. What Certifications Do We Have?

We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.

5. What Services Can We Provide?

Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.

Accepted Payment Currency: USD, EUR, CNY.

Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
