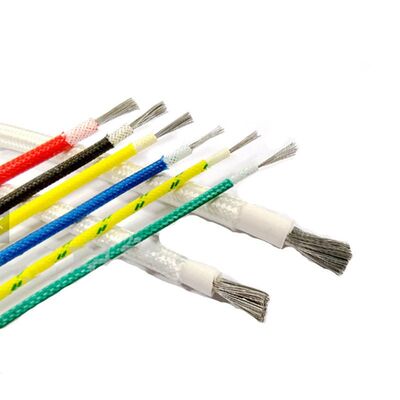

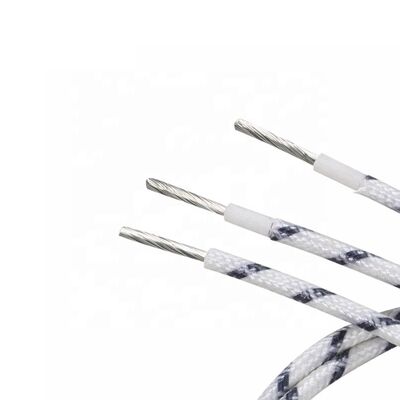

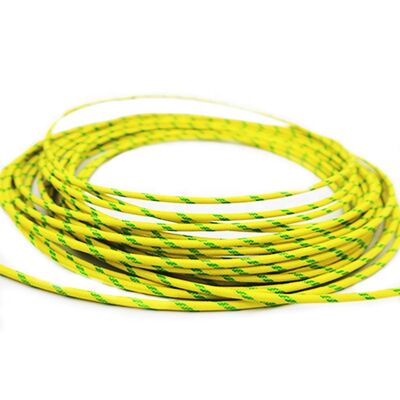

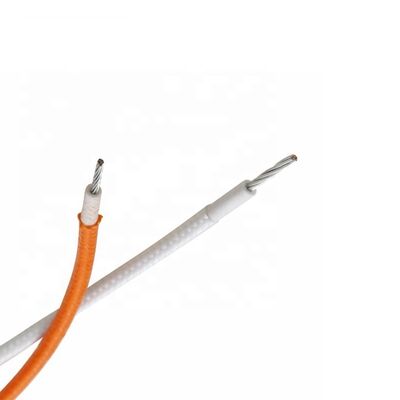

UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nilai Tegangan | 600v | Suhu pengenal | 200 Derajat |
|---|---|---|---|
| Bahan konduktor | Tembaga | Tipe Konduktor | Terdampar |
| Bahan isolasi | karet silikon | Pengukur kawat | 13AWG, 14AWG, 16AWG, 18AWG |
| Diameter konduktor | 1,19mm (18AWG), 1,49mm (16AWG), 1,87mm (14AWG), 2,07mm (13AWG) | Ketebalan isolasi | 0.93mm |
| Diameter keseluruhan | 3,05mm (18AWG), 3,35mm (16AWG), 3,73mm (14AWG), 3,93mm (13AWG) | Resistensi konduktor maksimal | 23,2Ω/KM (18AWG), 14,6Ω/KM (16AWG), 8,96Ω/KM (14AWG), 6,97Ω/KM (13AWG) |
| Panjang satuan | 305M/ROL | Konstruksi Konduktor | 7/0,39 (18AWG), 7/0,49 (16AWG), 41/0,254 (14AWG), 50/0,254 (13AWG) |
| Konduktor kaleng | Ya | Kustomisasi warna | Tersedia |
| Panjang paket | 305 meter/rol | ||
| Menyoroti | UL3071 Certified Fiberglass Braided Wire,600V Rated Voltage Silicone Fiberglass Braided Wire,200 Degree Rated Temperature High Temperature Wire |
||
Deskripsi Produk

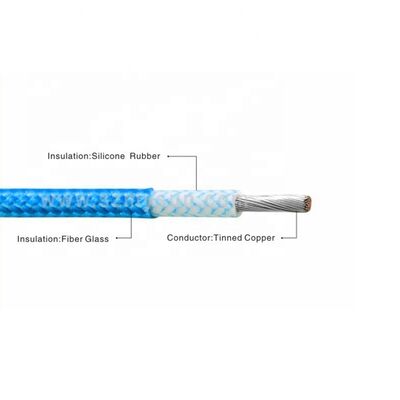

UL3071 600V 200°C High Temperature Wire (13AWG-18AWG) - Silicone Braided Fiber Glass Wire for Convection Heaters
Product Overview
We are seeking country agents for mutually beneficial partnerships in distributing our high-quality high-temperature wires.
Technical Specifications
| Conductor | Insulation | Max. Conductor Resistance (Ω/KM) | Unit Length (M/Ft) | |||
|---|---|---|---|---|---|---|
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | ||
| 18 | 7/0.39 | 1.19 | 0.93 | 3.05 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.93 | 3.35 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.87 | 0.93 | 3.73 | 8.96 | 305/1000 |
| 13 | 50/0.254 | 2.07 | 0.93 | 3.93 | 6.97 | 305/1000 |
Company Profile
Our Product Range
Applications
Our Global Clients
Trade Exhibitions
Certifications
Frequently Asked Questions
- Who are we? We are a professional manufacturer of high-temperature wires and cables with 26 years of experience. Our headquarters is in Shenzhen, China with production bases in Dongguan and Jingzhou.
- What we provide: High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cables, and wiring harnesses.
- Why choose us? Free samples, competitive pricing, high quality standards, and customized services.
- Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC.
- Services: Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
