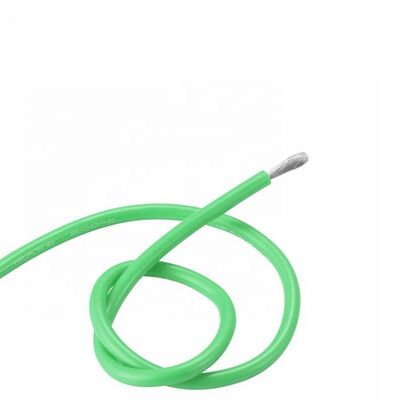

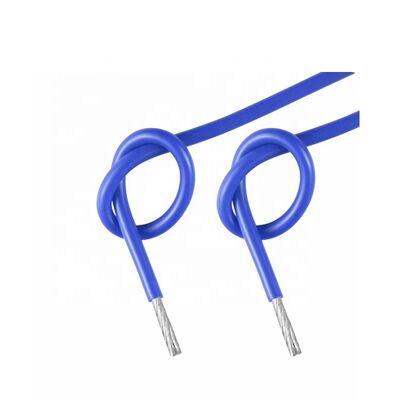

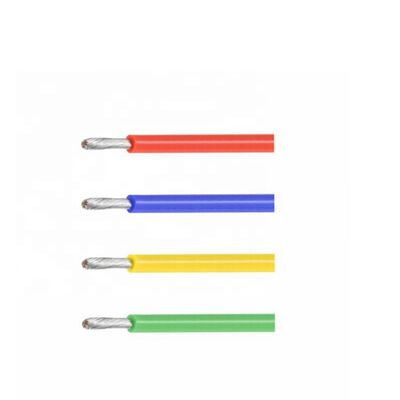

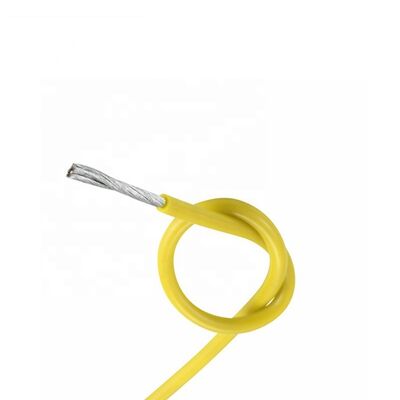

UL3136 Silicone Rubber Insulated Wire with 150C Rated Temperature 300V Rated Voltage and Tinned Copper Conductor
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Bahan Konduktor | Tembaga Tinner | Diameter | 20 AWG, 22 AWG, 24 AWG |
|---|---|---|---|
| Bahan Isolasi | Karet Silikon | Nilai Tegangan | 300 v |
| Tipe Konduktor | Terdampar | Nilai Suhu | 150 derajat |
| Panjang paket | 305 meter/rol | Konstruksi Konduktor | 1/0,40, 1/0,50, 1/0,65, 1/0,81 |
| Ketebalan isolasi | 1,15 mm | Resistensi konduktor maksimal | 150 Ω/KM, 94,2 Ω/KM, 59,4 Ω/KM, 36,7 Ω/KM |
| Diameter konduktor | 0,40mm, 0,50mm, 0,65mm, 0,81mm | Diameter Isolasi | 2,70mm, 2,80mm, 2,95mm, 3,11mm |
| Panjang satuan | 305/1000 | Jenis kawat | Terisolasi |
| Bahan | Tembaga Standar | ||
| Menyoroti | 150C Rated Temperature Silicone Rubber Wire,300V Rated Voltage UL3136 Wire,Tinned Copper Conductor Silicone Rubber Insulated Wire |
||
Deskripsi Produk
UL3136 150C 300V Tinned Copper Silicone Rubber Electric Kettle Wire
Available in 20AWG, 22AWG, 24AWG, and 26AWG configurations for various electrical applications.
Seeking Country Agents for a Win-Win Partnership
Product Overview
Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M/Ft) |
|---|---|---|---|---|---|---|
| 26 | 1/0.40 | 0.40 | 1.15 | 2.70 | 150 | 305/1000 |
| 24 | 1/0.50 | 0.50 | 1.15 | 2.80 | 94.2 | 305/1000 |
| 22 | 1/0.65 | 0.65 | 1.15 | 2.95 | 59.4 | 305/1000 |
| 20 | 1/0.81 | 0.81 | 1.15 | 3.11 | 36.7 | 305/1000 |
Click contact us for a competitive quote
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition Participation
Certifications
Frequently Asked Questions
- Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquarters in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
