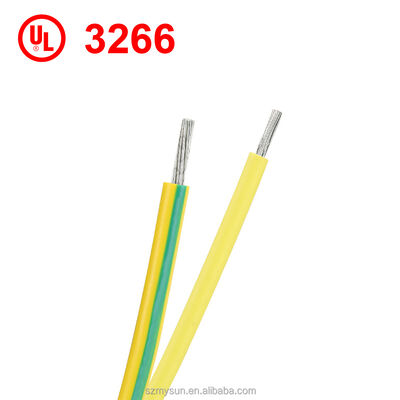

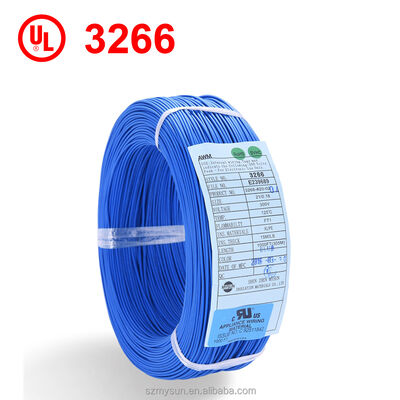

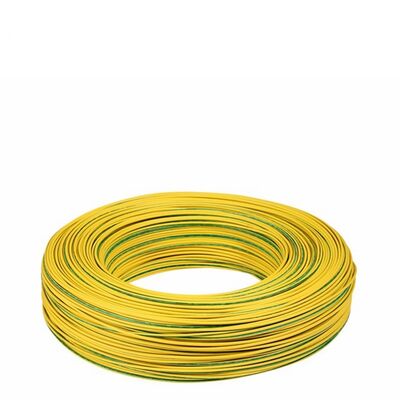

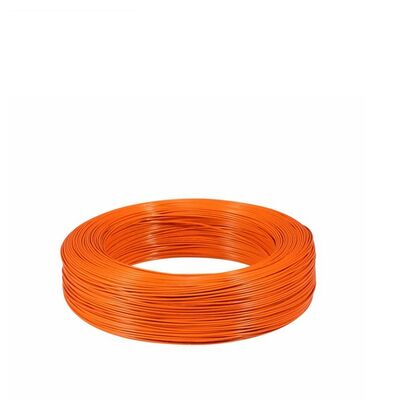

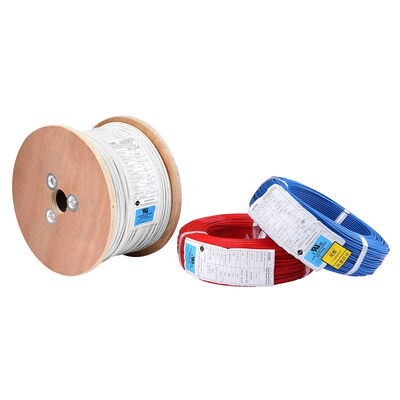

UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
Detail produk
| Bahan konduktor | Tembaga Kaleng | Pilihan Diameter | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 0,50mm2, 0,75mm2, 1mm2, 1,5mm2 |
|---|---|---|---|
| Bahan isolasi | XLPE | Nilai Tegangan | 300 v |
| Tipe Konduktor | Padat | Membentuk | Bulat |
| Suhu maksimal | 125C | Rentang Ukuran | 32~10AWG |
| Warna Tersedia | Merah, biru, putih, kuning, hijau, coklat, hitam, abu-abu | Konstruksi Konduktor | 30/0.18 |
| Ketebalan nominal | 0,39mm | Resistensi konduktor maksimal | 3,55Ω/KM (10AWG) |
| Panjang satuan | 305m/1000 kaki | Ketebalan Isolasi | 0,39mm |
| Diameter keseluruhan | 4.05mm (10AWG) | ||
| Menyoroti | Tinned Copper XLPE Wire,125C Rated Temperature Hook Up Wire,300V Rated Voltage UL3266 Wire |
||
Deskripsi Produk
UL3266 Yellow Green 0.75mm² 30/0.18 300V 125°C Tinned Copper XLPE Wire
Premium UL3266 certified wire designed for Battery Energy Storage Systems (BESS) and electrical applications requiring high temperature resistance and reliable performance.
Product Overview
Technical Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 32 | 7/0.08 | 0.24 | 0.39 | 1.02 | 563 | 610/2000 |
| 30 | 7/0.10 | 0.30 | 0.39 | 1.08 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.39 | 1.16 | 239 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 0.39 | 1.26 | 150 | 610/2000 |
| 24 | 11/0.16 | 0.60 | 0.39 | 1.38 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.39 | 1.54 | 59.4 | 305/1000 |
| 20 | 21/0.18 | 0.94 | 0.39 | 1.72 | 36.7 | 305/1000 |
| 18 | 16/0.254 | 1.18 | 0.39 | 1.96 | 23.2 | 305/1000 |
| 16 | 26/0.254 | 1.50 | 0.39 | 2.28 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.89 | 0.39 | 2.77 | 8.96 | 305/1000 |
| 12 | 65/0.254 | 2.37 | 0.39 | 3.15 | 5.64 | 305/1000 |
| 10 | 105/0.254 | 3.02 | 0.39 | 4.05 | 3.55 | 305/1000 |
| Customized size according to your needs | ||||||
Our Product Range
Applications
Company Profile
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08:00). We have public holiday during May 1-3, Oct 1-7 and Chinese New Year holiday. Please email us during our holiday if you have any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. Buyer should bear all the shipping costs.
What is your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal.
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
