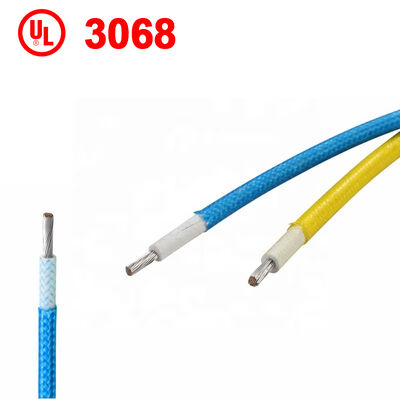

UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
Detail produk
| Bahan konduktor | Tembaga | Pilihan Diameter | 16AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG, 30AWG |
|---|---|---|---|
| Bahan isolasi | Karet | Nilai Tegangan | 300 v |
| Tipe Konduktor | Terdampar | Suhu maksimal | 150C |
| Jenis isolasi | Karet Silikon | Konstruksi Konduktor | Tembaga Kaleng |
| Panjang satuan | 305 meter/rol | Resistensi konduktor maksimal | 14,6-381 ohm/KM |
| Ketebalan nominal | 0,60 mm | Diameter Isolasi | 1,50-2,69mm |
| Diameter konduktor | 0,30-1,49mm | Konstruksi untai | 7/0,10 hingga 7/0,49 |
| Jenis kawat | UL3068 | ||
| Menyoroti | High Temperature Resistance Fiberglass Braided Wire,300V Rated Voltage Silicone Fiberglass Braided Wire,150C Temperature Rating UL3068 Wire |
||
Deskripsi Produk
UL3068 High Temperature Resistance Silicone Fiberglass Braided Wire
Premium UL3068 certified motor and generator wire designed for high-temperature applications up to 150°C with 300V rating.
Product Images
Technical Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond. Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 30 | 7/0.10 | 0.30 | 0.60 | 1.50 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.60 | 1.58 | 239 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 0.60 | 1.68 | 150 | 610/2000 |
| 24 | 7/0.20 | 0.61 | 0.60 | 1.81 | 94.2 | 610/2000 |
| 22 | 7/0.254 | 0.77 | 0.60 | 1.97 | 59.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.60 | 2.14 | 36.7 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.60 | 2.39 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.60 | 2.69 | 14.6 | 305/1000 |
Click here to contact us for a competitive quote
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment: USD, EUR, CNY via T/T, L/C, PayPal, Western Union, Cash.
