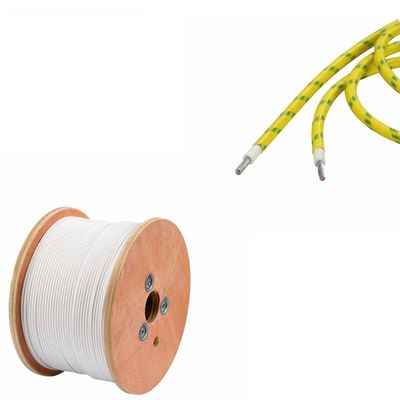

UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Bahan konduktor | Tembaga | Bahan isolasi | Karet silikon |
|---|---|---|---|
| Tegangan Dinilai | 300 v | Jenis konduktor | Terdampar |
| Membentuk | Bulat | Suhu maksimal | 200c |
| Diameter konduktor | 0.48-1.49 mm | Ketebalan isolasi | 0,60-0,65 mm |
| Diameter kawat | 1.68-2.69 mm | Resistensi Konduktor | 14.00-143.00 Ω/km |
| Panjang satuan | 305 meter/rol | Ukuran AWG | 16-26 |
| Konstruksi Konduktor | 7/0,16 hingga 50/0,18 | Selesai konduktor | Tembaga kaleng |
| Jenis isolasi | Karet | ||
| Menyoroti | 300V Silicone Insulated Wire,200C High Temperature Wire,18 AWG Silicone Rubber Insulated Wire |
||
Deskripsi Produk

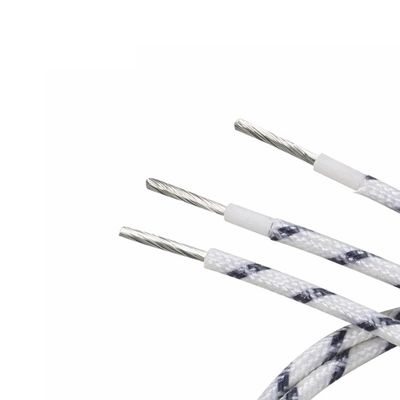

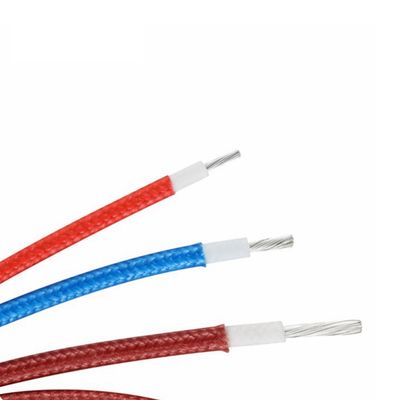

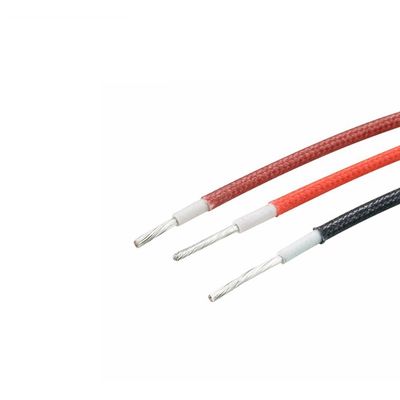

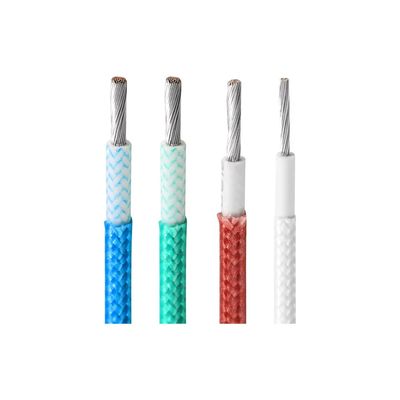

UL3122 Silicone Fiberglass Braided Wire 300V 18 AWG 20 AWG High Temperature Heating Cables
High-quality silicone fiberglass braided wire designed for home appliances and industrial applications requiring high temperature resistance up to 200°C.
Specifications
| Conductor | Insulation | Max. Cond. Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|
| Size (AWG): 26 Construction: 7/0.16 Diameter: 0.48mm |
Nominal Thickness: 0.60mm Diameter: 1.68mm |
143.00 | 305/1000 |
| Size (AWG): 24 Construction: 7/0.20 Diameter: 0.61mm |
Nominal Thickness: 0.60mm Diameter: 1.81mm |
89.30 | 305/1000 |
| Size (AWG): 22 Construction: 7/0.254 Diameter: 0.77mm |
Nominal Thickness: 0.60mm Diameter: 1.97mm |
56.40 | 305/1000 |
| Size (AWG): 20 Construction: 7/0.31 Diameter: 0.94mm |
Nominal Thickness: 0.60mm Diameter: 2.14mm |
35.20 | 305/1000 |
| Size (AWG): 18 Construction: 7/0.39 Diameter: 1.19mm |
Nominal Thickness: 0.60mm Diameter: 2.39mm |
22.20 | 305/1000 |
Product Features
- Place of Origin: China, Guangdong
- Type: Insulated wire with silicone rubber insulation
- Application: Home appliances, lighting, heaters, motors, generators, industrial power
- Conductor Material: Tinned copper (stranded)
- Color options: Accept customized colors
- Usage: High temperature electric furnace heating
- Rated Voltage: 300V
- Rated Temperature: 200°C
- Package: 305 meter/roll
- Certification: ROHS, CCC, VDE, ISO9001:2008
Company Profile
Shenzhen Mysun Insulation Materials Co., Ltd. is a comprehensive enterprise specializing in high temperature wires for home appliances, electronic products, lighting, medical units, and communication equipment. Our products meet UL, CUL, VDE and SGS certifications and comply with ISO9001 international standards.
Packing
Applications
Frequently Asked Questions
How can I contact your company?
We are available via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08.00). We observe public holidays during May 1-3, October 1-7, and Chinese New Year.
Do you provide free samples?
Yes, we provide free samples for testing, but buyers must cover all shipping costs.
What are your payment terms?
We accept T/T, L/C, D/A, D/P, Western Union, MoneyGram, and Paypal.
What is the lead time?
Sample lead time is typically 7 days after payment confirmation.
