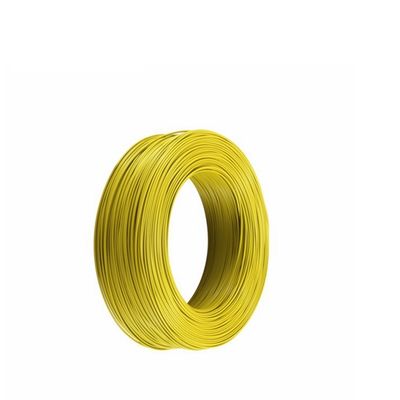

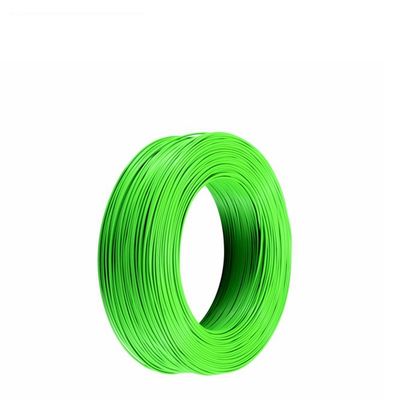

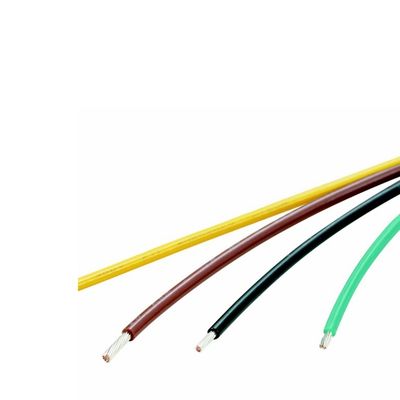

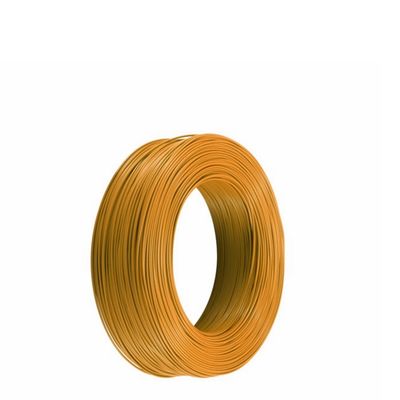

UL1901 FEP Wire 600V 200C High Temperature Wire for Industrial Robots and Drones
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Bahan konduktor | Tembaga kaleng | Diameter | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 6 AWG, 8 AWG, 4 AWG, 2 AWG, 1 AWG, 2 |
|---|---|---|---|
| Bahan isolasi | Karet | Nilai Tegangan | 600 v |
| Tipe Konduktor | Padat | Membentuk | Bulat |
| Peringkat suhu | 200℃ | Jenis | Terisolasi |
| Panjang satuan | 305/1000 | Ketebalan isolasi | 0,350mm, 0,500mm, 0,760mm |
| Resistensi konduktor maksimal | 381 Ω/KM, 239 Ω/KM, 150 Ω/KM, 94,2 Ω/KM, 59,4 Ω/KM, 36,7 Ω/KM, 23,2 Ω/KM, 14,6 Ω/KM, 8,96 Ω/KM, 5,64 | Konstruksi Konduktor | 7/0.10, 7/0.12, 7/0.16, 7/0.20, 19/0.15, 19/0.19, 19/0.235, 19/0.30, 19/0.37, 19/0.47, 19/0.43, 37/0 |
| Diameter nominal | 0,30mm, 0,36mm, 0,48mm, 0,60mm, 0,75mm, 0,93mm, 1,17mm, 1,50mm, 1,85mm, 2,35mm, 3,00mm, 3,78mm, 4,20 | Diameter Isolasi | 1,00 mm, 1,08 mm, 1,18 mm, 1,30 mm, 1,45 mm, 1,63 mm, 1,87 mm, 2,20 mm, 2,55 mm, 3,05 mm, 3,70 mm, 4 |
| Menyoroti | UL1901 FEP Wire,600V High Temperature Wire,200C Robot Cable |
||
Deskripsi Produk
UL1901 FEP Wire AWG 600V 200°C High Temperature Wire for Robot Cable
Supplies Fortune 500 Companies - Top PFA Wire Supplier In China.
Specification
| UL1901 | Conductor | Insulation | Max. Cond Resistance (Ω/KM) | Unit length (M)(Ft) | ||
|---|---|---|---|---|---|---|
| Size (AWG) | Construction (No.mm) | Diameter (mm) | Nominal thickness (mm) | Diameter (mm) | ||
| 30 | 7/0.10 | 0.30 | 0.350 | 1.00 | 381 | 610/2000 |
| 28 | 7/0.12 | 0.36 | 0.350 | 1.08 | 239 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 0.350 | 1.18 | 150 | 610/2000 |
| 24 | 7/0.20 | 0.60 | 0.350 | 1.30 | 94.2 | 610/2000 |
| 22 | 19/0.15 | 0.75 | 0.350 | 1.45 | 59.4 | 305/1000 |
| 20 | 19/0.19 | 0.93 | 0.350 | 1.63 | 36.7 | 305/1000 |
| 18 | 19/0.235 | 1.17 | 0.350 | 1.87 | 23.2 | 305/1000 |
| 16 | 19/0.30 | 1.50 | 0.350 | 2.20 | 14.6 | 305/1000 |
| 14 | 19/0.37 | 1.85 | 0.350 | 2.55 | 8.96 | 305/1000 |
| 12 | 19/0.47 | 2.35 | 0.350 | 3.05 | 5.64 | 305/1000 |
| 10 | 19/0.43 | 3.00 | 0.350 | 3.70 | 3.55 | 305/1000 |
| 8 | 37/0.54 | 3.78 | 0.500 | 4.78 | 2.23 | Customize |
| 7 | 37/0.60 | 4.20 | 0.500 | 5.20 | 1.77 | Customize |
| 6 | 37/0.68 | 4.76 | 0.500 | 5.76 | 1.41 | Customize |
| 5 | 37/0.76 | 5.32 | 0.500 | 6.32 | 1.12 | Customize |
| 4 | 37/0.86 | 6.02 | 0.500 | 7.02 | 0.89 | Customize |
| 3 | 7/2.21 | 6.63 | 0.500 | 7.63 | 0.71 | Customize |
| 2 | 7/2.48 | 7.44 | 0.500 | 8.44 | 0.56 | Customize |
| 1 | 7/2.78 | 8.34 | 0.760 | 9.86 | 0.4268 | Customize |
| 0 | 7/3.20 | 9.60 | 0.760 | 11.12 | 0.3367 | Customize |
| 2/0 | 7/3.57 | 10.71 | 0.760 | 12.23 | 0.267 | Customize |
| 3/0 | 7/3.94 | 11.82 | 0.760 | 13.34 | 0.2119 | Customize |
| 4/0 | 7/4.42 | 13.26 | 0.760 | 14.78 | 0.168 | Customize |
Company Profile
Our Products
Application
Our Overseas Clients
Exhibition
Certifications
FAQ
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
- Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
- What Certifications Do We Have? We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
- What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
