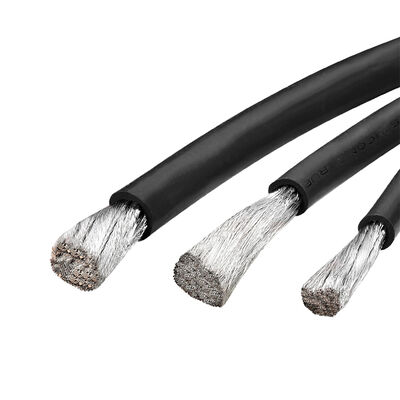

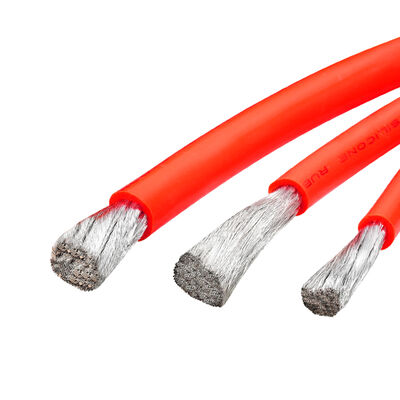

EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
Detail produk
| Bahan konduktor | Tembaga Kaleng | Diameter | 10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm², 95 mm², 150 mm², 240 mm², 300 mm², 400 mm², 0,2mm², |
|---|---|---|---|
| Bahan isolasi | XLPE | Nilai Tegangan | 1500V |
| Tipe Konduktor | Terdampar | Membentuk | Bulat |
| Suhu | 200C, 200℃ | Isolasi | Karet Silikon |
| Ketahanan Maks | 1,80 Ω/KM (10,0 mm²), 1,15 Ω/KM (16,0 mm²), 0,80 Ω/KM (25,0 mm²), 0,60 Ω/KM (35,0 mm²), 0,40 Ω/KM (5 | Konstruksi Konduktor | 790/0,127 (10,0 mm²), 510/0,2 (16,0 mm²), 797/0,2 (25,0 mm²), 1115/0,2 (35,0 mm²), 1593/0,2 (50,0 mm |
| Ketebalan nominal | ≥0,65 mm (10,0 mm²), ≥0,70 mm (16,0 mm²), ≥0,80 mm (25,0 mm²), ≥0,90 mm (35,0 mm²), ≥0,90 mm (50,0 m | Diameter Isolasi | 6,40 mm (10,0 mm²), 8,00 mm (16,0 mm²), 10,00 mm (25,0 mm²), 11,50 mm (35,0 mm²), 13,00 mm (50,0 mm² |
| Diameter konduktor | 4,6 mm (10,0 mm²), 6,0 mm (16,0 mm²), 7,5 mm (25,0 mm²), 8,8 mm (35,0 mm²), 10,3 mm (50,0 mm²), 12,0 | Peringkat Tegangan | 1500V |
| Jenis kawat | Kabel Penyimpanan Energi Baterai Terisolasi | ||
| Menyoroti | 1500V Rated Voltage XLPE Wire,Tinned Copper Conductor Battery Cable,200C Temperature Rating EV Cable |
||
Deskripsi Produk
EV 125C 1500V XLPE Wire for New Energy Equipment
Supplies Fortune 500 Companies - Top XLPE Cable Supplier in China
Technical Specifications
| Conductor Size (mm²) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) |
|---|---|---|---|---|---|
| 10.0 | 790/0.127 | 4.6 | ≥0.65 | 6.40 | 1.80 |
| 16.0 | 510/0.2 | 6.0 | ≥0.70 | 8.00 | 1.15 |
| 25.0 | 797/0.2 | 7.5 | ≥0.80 | 10.00 | 0.80 |
| 35.0 | 1115/0.2 | 8.8 | ≥0.90 | 11.50 | 0.60 |
| 50.0 | 1593/0.2 | 10.3 | ≥0.90 | 13.00 | 0.40 |
| 70.0 | 2230/0.2 | 12.0 | ≥1.00 | 15.00 | 0.30 |
| 95.0 | 3026/0.2 | 14.0 | ≥1.00 | 17.00 | 0.20 |
| 120.0 | 3823/0.2 | 16.0 | ≥1.30 | 20.00 | 0.17 |
| 150.0 | 4778/0.2 | 18.0 | ≥1.30 | 22.00 | 0.14 |
| 185.0 | 5893/0.2 | 19.0 | ≥1.30 | 24.00 | 0.11 |
| 240.0 | 7644/0.2 | 24.0 | ≥1.30 | 28.00 | 0.09 |
Company Profile
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, WhatsApp, or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08:00). We have public holidays during May 1-3, October 1-7, and Chinese New Year. Please email us during holidays with any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. Buyers should bear all shipping costs.
What are your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, PayPal.
What is the lead time?
Usually sample lead time is 7 days after payment confirmation.
