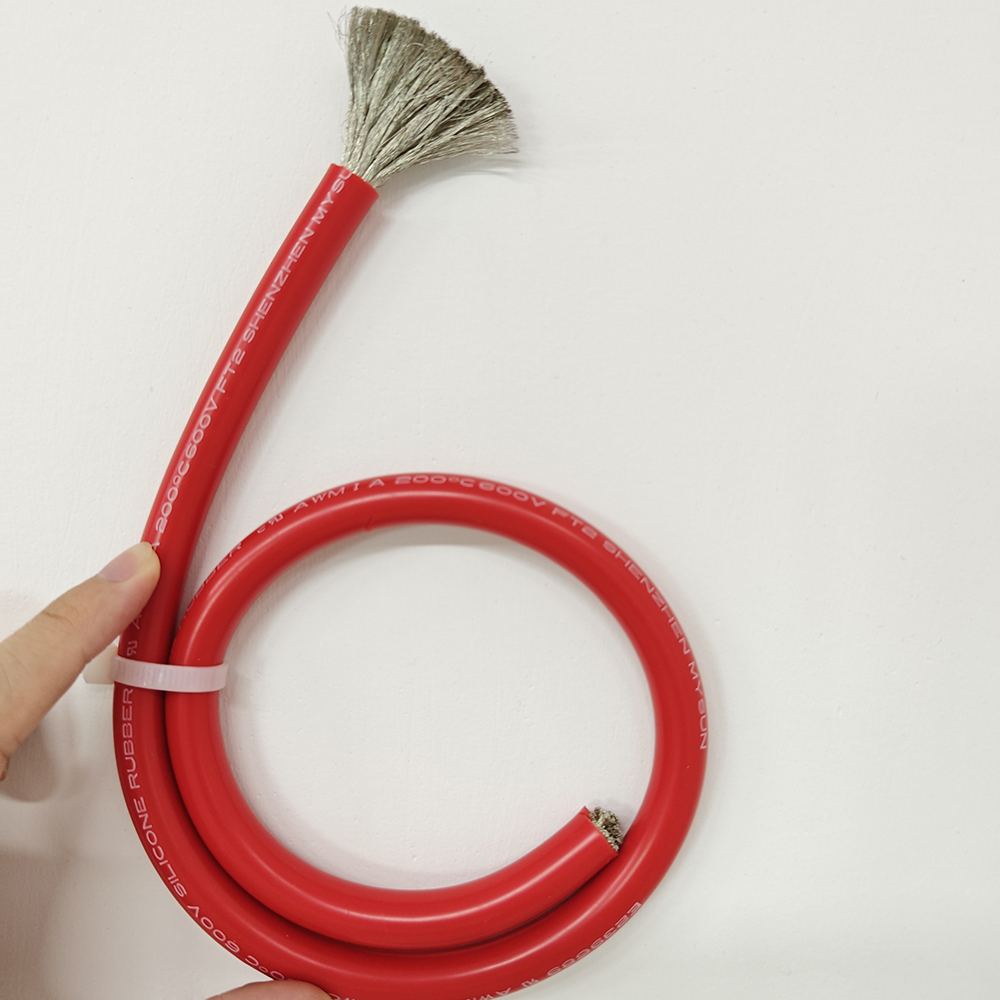

10AWG Silicone Rubber Wire 1050/0.08 Tinned Copper UL758
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Conductor Material | Tinned Copper wire | Insulation Material | Silicone Rubber |
|---|---|---|---|
| Rated Voltage | 600V | Conductor Type | Tinned Copper |
| AWG Size | 10 | Conductor Construction | 1050/0.08 |
| Conductor Diameter | 3.40±0.30 mm | Insulation Thickness | 1.15 mm |
| Overall Diameter | 5.50±0.2 mm | Temperature Range | High Temperature |
| Wire Flexibility | Super Soft | Color Options | Optional |
| Conductor Core | Copper | Jacket Material | Silicone Rubber |
| Wire Standard | UL 758 | ||
| Menyoroti | 10AWG silicone rubber wire,tinned copper silicone wire,UL758 silicone insulated wire |
||
Deskripsi Produk
Super Soft Silicone Wire 1050/0.08 10AWG High Temperature Battery Cable
Product Specifications
| Attribute | Value |
|---|---|
| Type | Insulated |
| Application | Home appliance, lighting, heater, motor & generator |
| Conductor Material | Tinned Copper wire |
| Conductor Type | Tinned copper |
| Insulation Material | Silicone Rubber |
| Rated voltage | 600V |
| Standard | UL 758 |
| Color | Optional |
Product Description
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China.
Technical Specifications
| Conductor | Insulation | |||
|---|---|---|---|---|
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) |
| 26 | 25/0.08 | 0.48 | 0.78 | 2.10±0.1 |
| 24 | 41/0.08 | 0.60 | 0.78 | 2.20±0.1 |
| 22 | 65/0.08 | 0.78 | 0.78 | 2.50±0.1 |
| 20 | 104/0.08 | 0.95 | 0.78 | 2.55±0.1 |
| 18 | 164/0.08 | 1.17 | 0.78 | 2.80±0.1 |
| 16 | 261/0.08 | 1.47 | 0.78 | 3.10±0.1 |
| 14 | 415/0.08 | 2.10 | 0.78 | 3.70±0.1 |
| 12 | 660/0.08 | 2.70 | 0.78 | 4.30±0.1 |
| 10 | 1050/0.08 | 3.40±0.30 | 1.15 | 5.50±0.2 |
Contact Us to Get the Most Cost-effective Quote
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience.
- What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized service.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
