High Voltage Silicone Insulated Wire with 1000V Rated Voltage and Big Current for Energy Storage Systems
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Bahan konduktor | Tembaga | Bahan isolasi | Karet |
|---|---|---|---|
| Jenis konduktor | Terdampar | Tegangan Dinilai | 1000V |
| Suhu pengenal | -80c ~+200c | Konduktor | Kawat Kaleng |
| Isolasi | Karet silikon | Resistensi Konduktor | 143 Ω/km (26 AWG) |
| Panjang satuan | 305/1000 m/ft | Diameter konduktor | 0,48 mm (26 AWG) |
| Ketebalan isolasi | 0,78 mm | Diameter keseluruhan | 2,04 mm (26 AWG) |
| Ukuran AWG | 26, 24, 22, 20, 18, 16, 14, 12 | Penampang | 0.30mm² hingga 2.50mm² |
| Konstruksi untai | 7/0,16 (26 AWG) | ||
| Menyoroti | 1000V Rated Voltage Silicone Insulated Wire,-80C to +200C Temperature Range Silicone Rubber Wire,Big Current High Voltage Wire |
||
Deskripsi Produk
High Voltage Battery Connecting Wire Harness Cable
Big Current Energy Storage Systems Tinned Copper Jacket Silicone Cable
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
UL3135 Technical Specifications
| Conductor | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max.Cond Resistance (Ω/KM) | Unit Length (M)/(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.78 | 2.17 | 89.3 | |
| 22 | 7/0.254 | 0.77 | 0.78 | 2.33 | 56.4 | |
| 20 | 7/0.31 | 0.94 | 0.78 | 2.5 | 35.2 | |
| 18 | 7/0.39 | 1.19 | 0.78 | 2.75 | 22.2 | |
| 16 | 7/0.49 | 1.49 | 0.78 | 3.05 | 14 | |
| 24 | 11/0.16 | 0.61 | 0.78 | 2.17 | 89.3 | |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 56.4 | |
| 20 | 26/0.16 | 0.94 | 0.78 | 2.5 | 35.2 | |
| 18 | 41/0.16 | 1.18 | 0.78 | 2.74 | 22.2 | |
| 16 | 26/0.254 | 1.49 | 0.78 | 3.05 | 14 | |
| 14 | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | |
| 12 | 19/0.47 | 2.63 | 0.78 | 3.92 | 5.53 | |
| 0.30mm² | 12/0.18 | 0.71 | 0.78 | 2.27 | 59.78 | |
| 0.50mm² | 20/0.18 | 0.92 | 0.78 | 2.48 | 40.1 | |
| 0.75mm² | 30/0.18 | 1.13 | 0.78 | 2.69 | 26.7 | |
| 1.00mm² | 40/0.18 | 1.31 | 0.78 | 2.87 | 20 | |
| 1.25mm² | 50/0.18 | 1.46 | 0.78 | 3.02 | 14.35 | |
| 2.00mm² | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | |
| 2.50mm² | 50/0.254 | 2.08 | 0.78 | 3.64 | 7.16 |

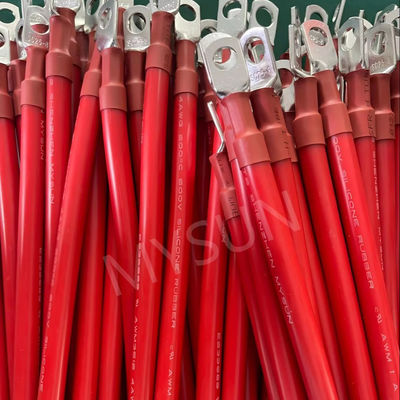

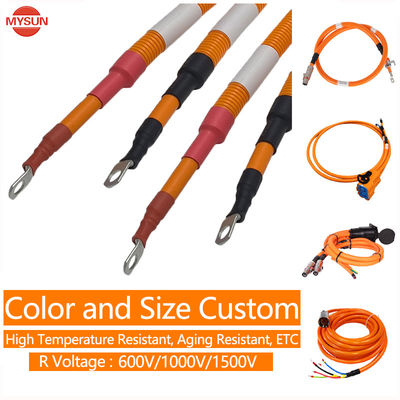

Product Gallery
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
- Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
