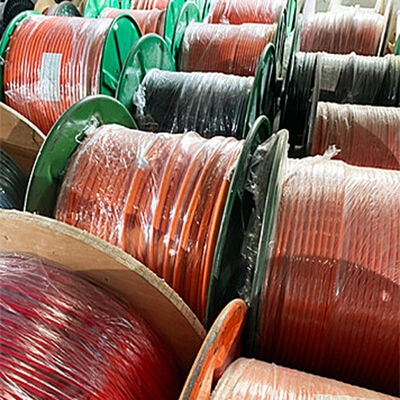

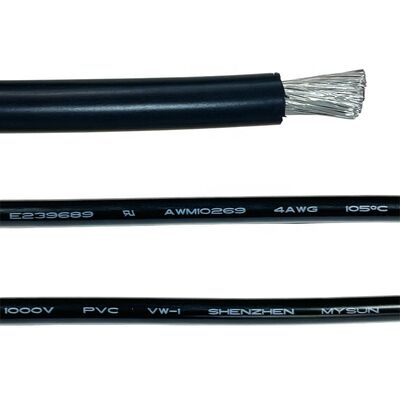

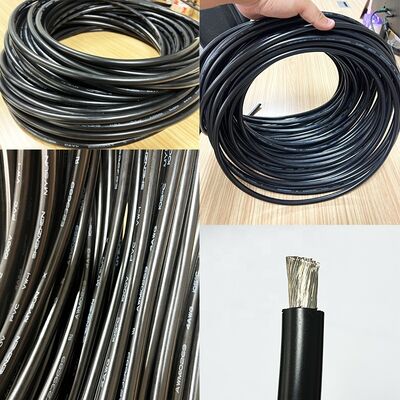

UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor
Detail produk
| Bahan konduktor | Tembaga | Bahan isolasi | PVC |
|---|---|---|---|
| Nilai Tegangan | 2000v | Rentang Ukuran | 4/0AWG, 3/0AWG, 2/0AWG, 1/0AWG, 2AWG, 4AWG, 6AWG, 8AWG, 3AWG, 5AWG |
| Suhu kerja | 105C | Diameter konduktor | 0,38 mm hingga 3,35 mm |
| Ketebalan Isolasi | 0.78mm | Menutupi ketebalan | 0,13-1,0 mm |
| Resistensi konduktor maksimal | 239Ω/KM hingga 2,813Ω/KM | Panjang satuan | 305M hingga 1220M |
| Bahan Jaket | PVC | Konstruksi Konduktor | 7/0,127 hingga 105/0,254 |
| Diameter nominal | 1,94 mm hingga 4,91 mm | Jenis Kabel | tegangan tinggi |
| Standar Ul | Nomor UL 11627 | ||
| Menyoroti | 2000V Rated Voltage Battery Cable,105C Working Temperature High Voltage Cable,Copper Conductor New Energy Cable |
||
Deskripsi Produk

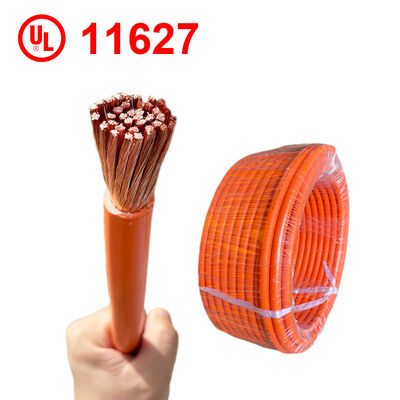

UL11627 New Energy Cable 2000V 105°C High Voltage PVC Wire
Supplies Fortune 500, Top New Energy Cable Supplier In China
Product Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Thickness (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M/Ft) |
|---|---|---|---|---|---|---|---|
| 28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 0.13-1.0 | 239 | 1220/4000 |
| 26 | 7/0.16 | 0.50 | 0.78 | 2.06 | 0.13-1.0 | 150 | 610/2000 |
| 24 | 7/0.20 | 0.60 | 0.78 | 2.16 | 0.13-1.0 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 0.13-1.0 | 59.4 | 610/2000 |
| 20 | 21/0.18 | 0.94 | 0.78 | 2.50 | 0.13-1.0 | 36.7 | 305/1000 |
| 18 | 16/0.254 | 1.19 | 0.78 | 2.75 | 0.13-1.0 | 23.2 | 610/2000 |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.06 | 0.13-1.0 | 14.6 | 610/2000 |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 0.13-1.0 | 8.96 | 610/2000 |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 0.13-1.0 | 5.64 | 610/2000 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 0.13-1.0 | 3.55 | 610/2000 |
| 9 | 37/0.475 | 3.35 | 0.78 | 4.91 | 0.13-1.0 | 2.813 | 610/2000 |
Contact Us to Get the Most Cost-effective Quote
Our Products
Application
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
