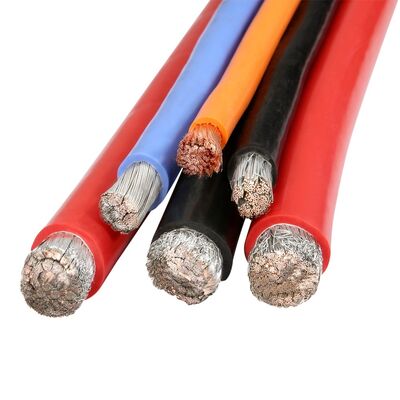

200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor
Detail produk
| Bahan konduktor | Tembaga | Pilihan Diameter | 1 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG |
|---|---|---|---|
| Bahan isolasi | Silikon | Nilai Tegangan | 600/1000/1500V |
| suhu terukur | -80C ~ +200C | Tipe Konduktor | Terdampar |
| Jenis isolasi | Karet Silikon | Diameter kawat tunggal | 0,08 mm |
| Ketebalan nominal | 0,78mm, 1,15mm, 1,52mm, 2,03mm | Konstruksi Konduktor | Kawat kaleng yang terdampar |
| Kisaran Diameter | 0,48 mm hingga 16,3 mm | Pengukur kawat | 26 AWG hingga 2/0 AWG |
| Hitungan untai | 25 hingga 13422 | Ketebalan Isolasi | 0,78 mm hingga 2,03 mm |
| Diameter keseluruhan | 2,10 mm hingga 16,3 mm | ||
| Menyoroti | 200C Rated Temperature Battery Cable,Ultra Soft Silicone Wire,Tinned Copper Conductor EV Cable |
||
Deskripsi Produk
2AWG 4AWG 6AWG 8AWG 200°C Ultra Soft EV Silicone Battery Cable
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
UL3512 - 0.08 Super Soft Silicone Wire Specifications
| Conductor | Insulation | |||
|---|---|---|---|---|
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) |
| 26 | 25/0.08 | 0.48 | 0.78 | 2.10±0.1 |
| 24 | 41/0.08 | 0.60 | 0.78 | 2.20±0.1 |
| 22 | 65/0.08 | 0.78 | 0.78 | 2.50±0.1 |
| 20 | 104/0.08 | 0.95 | 0.78 | 2.55±0.1 |
| 18 | 164/0.08 | 1.17 | 0.78 | 2.80±0.1 |
| 16 | 261/0.08 | 1.47 | 0.78 | 3.10±0.1 |
| 14 | 415/0.08 | 2.10 | 0.78 | 3.70±0.1 |
| 12 | 660/0.08 | 2.70 | 0.78 | 4.30±0.1 |
| 10 | 1050/0.08 | 3.40±0.30 | 1.15 | 5.50±0.2 |
| 9 | 1320/0.08 | 3.80±0.3 | 1.15 | 6.10±0.3 |
| 8 | 1650/0.08 | 4.00±0.30 | 1.15 | 6.30±0.3 |
| 7 | 2100/0.08 | 4.80±0.3 | 1.52 | 7.90±0.3 |
| 6 | 2648/0.08 | 5.30±0.30 | 1.52 | 8.30±0.4 |
| 5 | 3338/0.08 | 6.10±0.5 | 1.52 | 9.20±0.4 |
| 4 | 4210/0.08 | 6.80±0.5 | 1.52 | 9.90±0.4 |
| 3 | 5309/0.08 | 7.80±0.5 | 1.52 | 10.9±0.5 |
| 2 | 6692/0.08 | 8.70±0.5 | 1.52 | 11.8±0.5 |
| 1 | 8842/0.08 | 10.0±0.6 | 2.03 | 14.0±0.6 |
| 1/0 | 10647/0.08 | 11.0±0.70 | 2.03 | 15.0±0.6 |
| 2/0 | 13422/0.08 | 12.3±0.8 | 2.03 | 16.3±0.7 |
Contact Us to Get the Most Cost-effective Quote
Our Products
Application
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
